About This

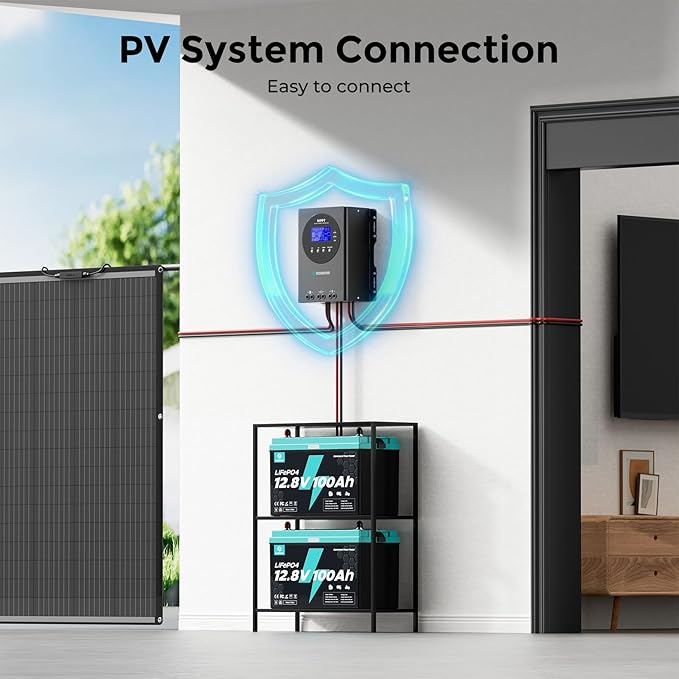

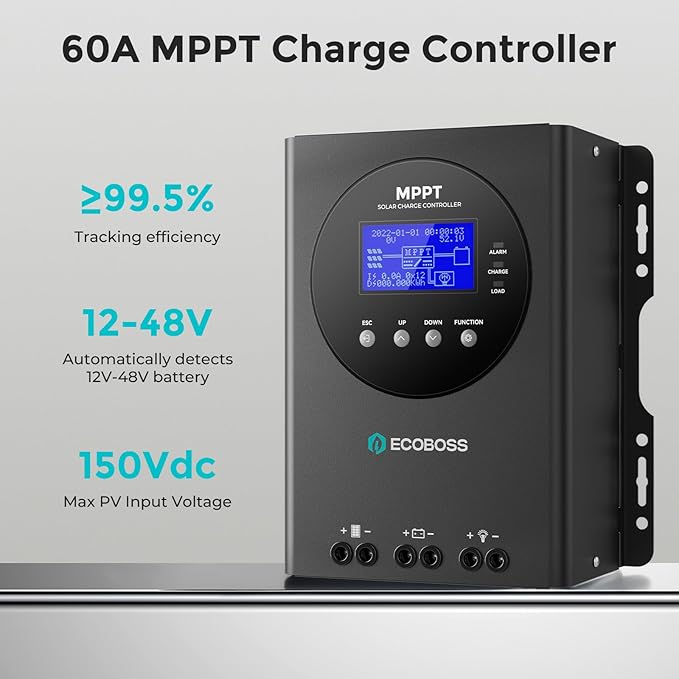

• High Efficiency 60A Multi Peak MPPT Charge Controller: Advanced multi-peak MPPT technology achieves ≥99.5% tracking efficiency and 97.5% conversion efficiency even under partial shading or cloudy conditions. Auto-detects 12V/24V/36V/48V battery systems to maximize solar power harvest for RVs, off-grid cabins, and marine applications.

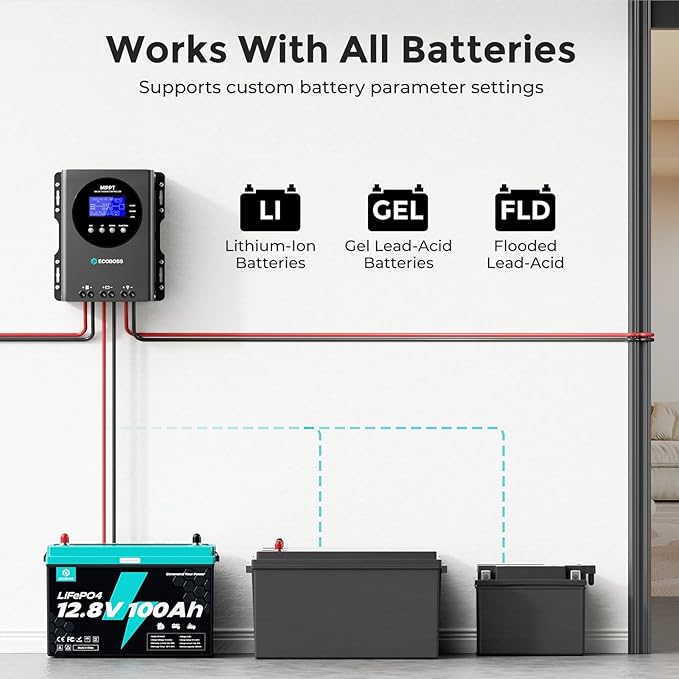

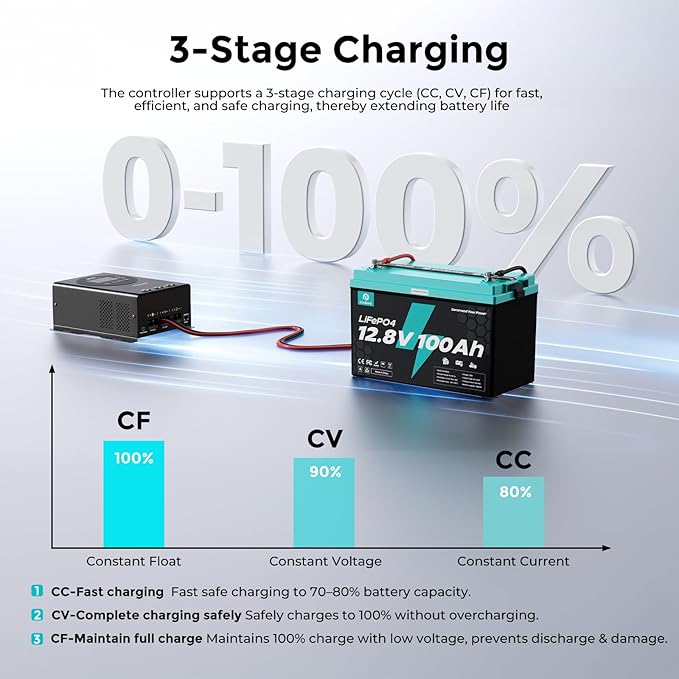

• Universal Compatibility with All Battery Types: Supports lead-acid (flooded, gel, sealed, custom) and lithium batteries (LiFePO4, Li-NCM, custom). 60A rated charging current is optimized for each battery type, ensuring better performance and longer battery lifespan.
• Superior heat dissipation and multiple safety features: This 60A controller features real-time power consumption monitoring and logging, as well as automatic power reduction during high-temperature charging. It also incorporates dual automatic limiting functions for both rated charging current and power, ensuring stable and long-lasting operation during the upcoming summer heat.

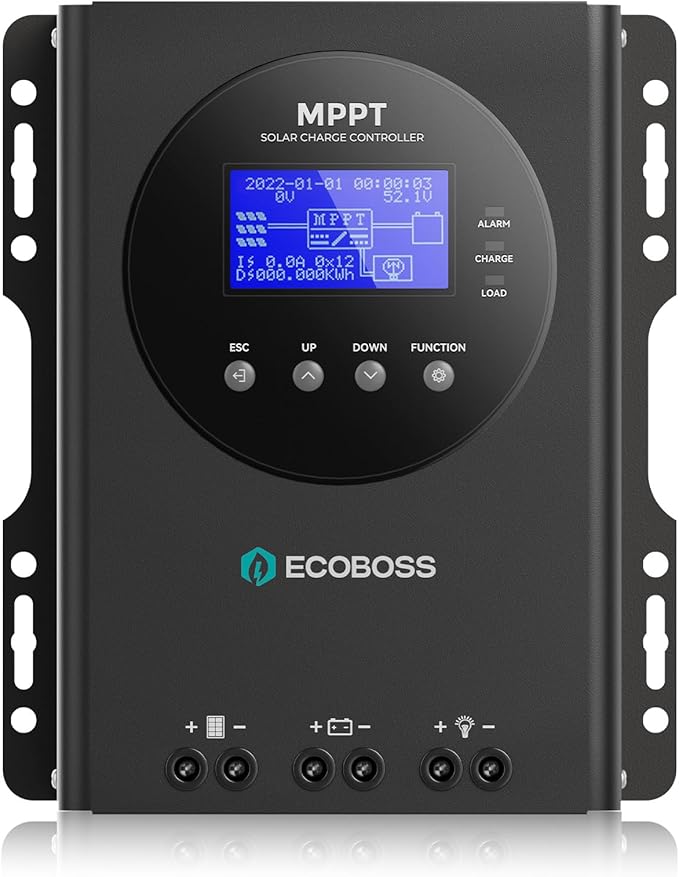

• LCD display makes operation simpler: With an accompanying LCD display, this 60A MPPT controller displays real-time system operation information through a backlit LCD and is equipped with 4 buttons for operating menus. The LCD screen and user-friendly buttons make operations on the device simple.

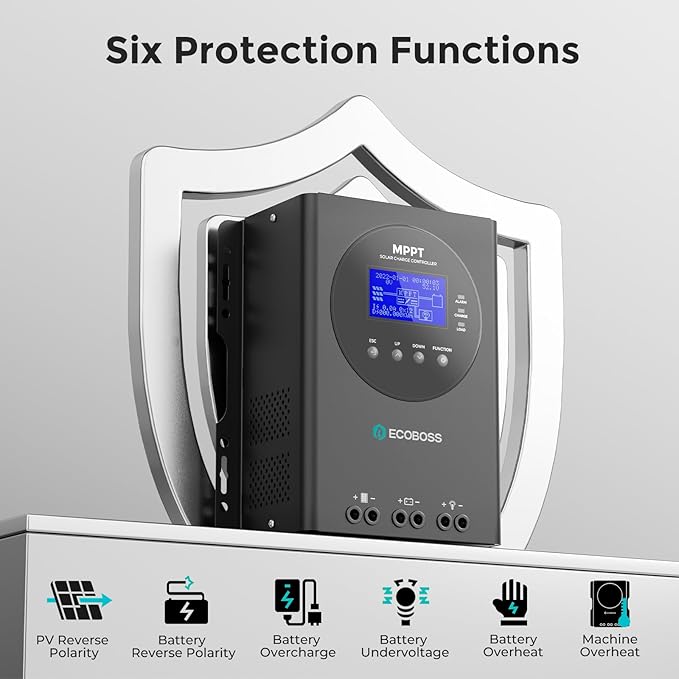

• Wide Temperature Range & Full Safety Protection: Operates reliably from -20°C to +50°C and safely stores from -40°C to +70°C. Built-in -3 mV/°C/2V temperature compensation automatically adjusts charging parameters. Features complete protection: PV/battery reverse polarity, overcharge, over-discharge, and over-temperature protection.

Overview

• Color : Black
• Brand : ECOBOSS

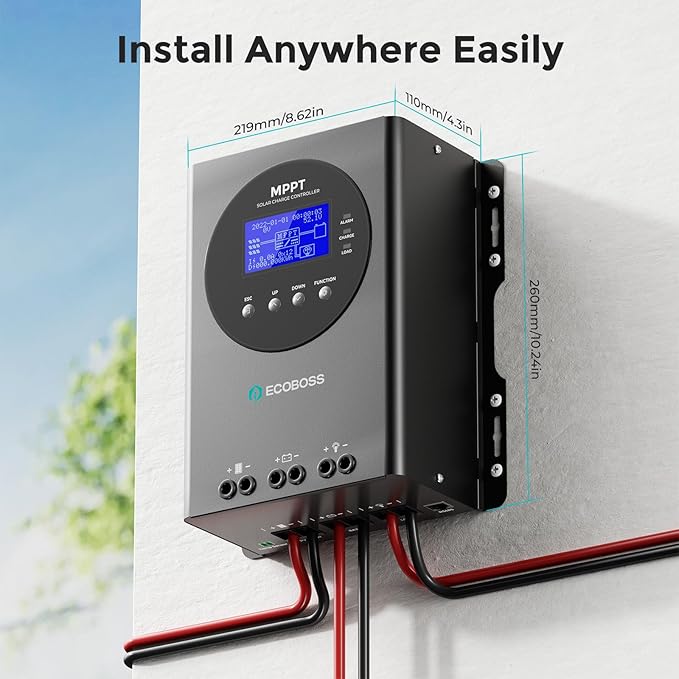

• Product Dimensions : 10.24"L x 8.62"W x 4.33"H
• Material : Metal
• Item Weight : 2.75 Kilograms
