About This

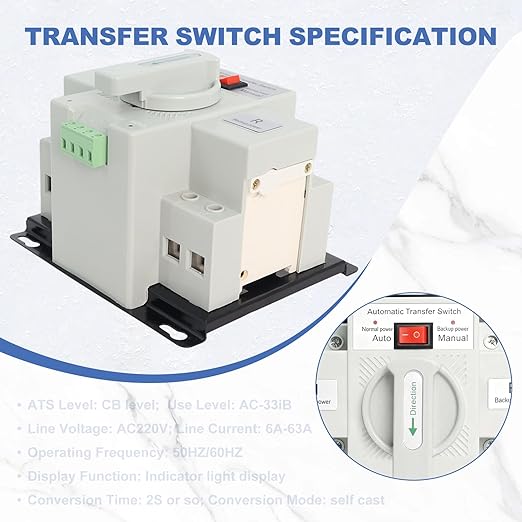

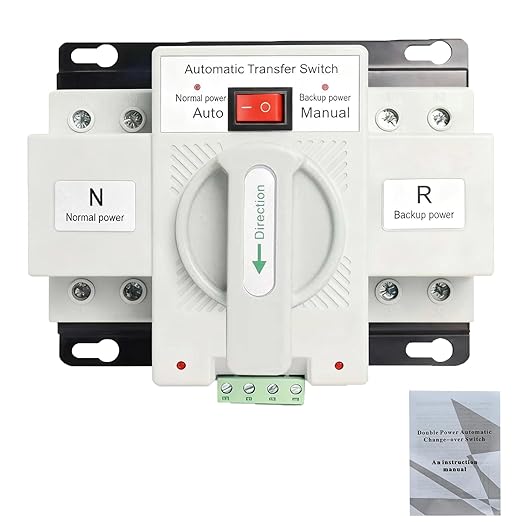

• 【Exceptional Performance】 63A dual-pole Automatic Transfer Switch (ATS), insulated for AC220V applications. Supports line currents from 6A to 63A and is compatible with both 50Hz and 60Hz systems. Features a rapid switching time of approximately 2 seconds for seamless power transfer and continuous electrical supply.

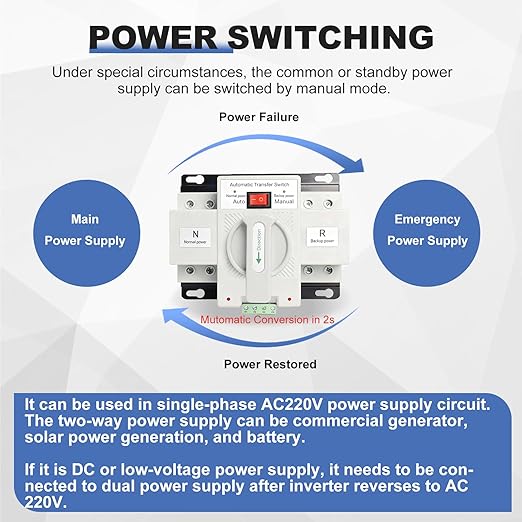

• 【Intelligent Dual-Mode Operation】 Offers both automatic and manual switching modes for flexible and reliable power control. In automatic mode, it continuously monitors the primary and backup power sources (detecting undervoltage or phase loss on Phase A) and performs an automatic, seamless transfer of the load circuit in case of irregularities, ensuring stable power for connected equipment. Manual mode serves as a reliable emergency override for enhanced adaptability.

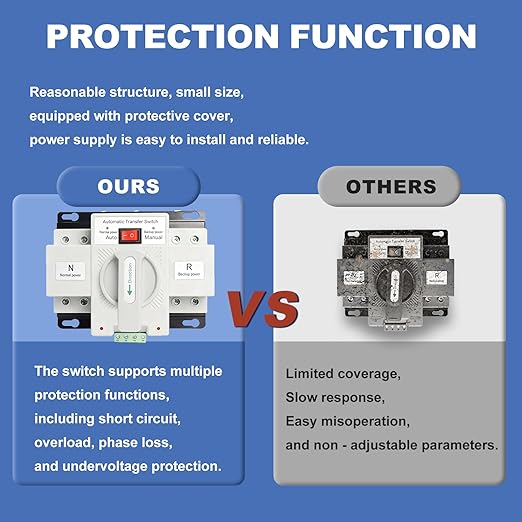

• 【Comprehensive Safety Protection】 Incorporates multiple protective features against short circuits, overloads, phase loss, and undervoltage. These integrated safeguards form a robust defense system, effectively minimizing electrical risks and protecting both equipment and personnel.
• 【Effortless Installation】 Designed with a compact, space-saving structure and a durable, high-quality protective housing. Comes with clear, step-by-step installation instructions, enabling straightforward setup even for users without professional expertise, significantly reducing installation time and overall costs.
• 【Wide Range of Applications】 This ATS is suitable for various environments including residential homes, hospitals, offices, and commercial buildings. It is particularly well-suited for critical applications in office complexes, public spaces, and locations with specific fire safety requirements. An ideal solution for diverse backup power needs, it is the preferred choice for reliable power switching.

Overview

• Operation Mode : ON-OFF
• Current Rating : 63 Amps
• Operating Voltage : 230 Volts
• Contact Type : Normally Open
• Connector Type : Clamp
• Brand : Zgqmcgy
• Switch Type : Rotary
• Terminal : Through Hole
• Material : Metal

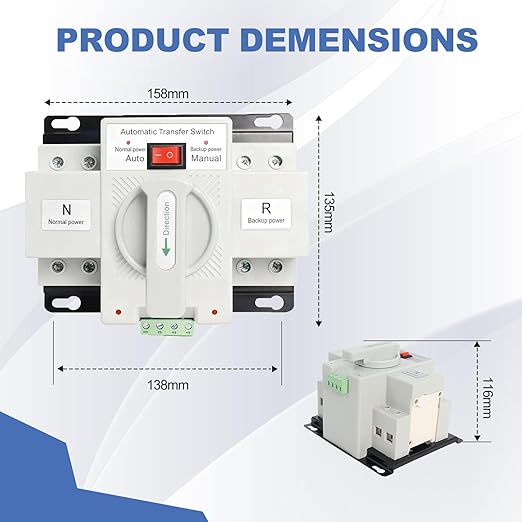

• Item dimensions L x W x H : 5 x 5 x 5 inches
