About This

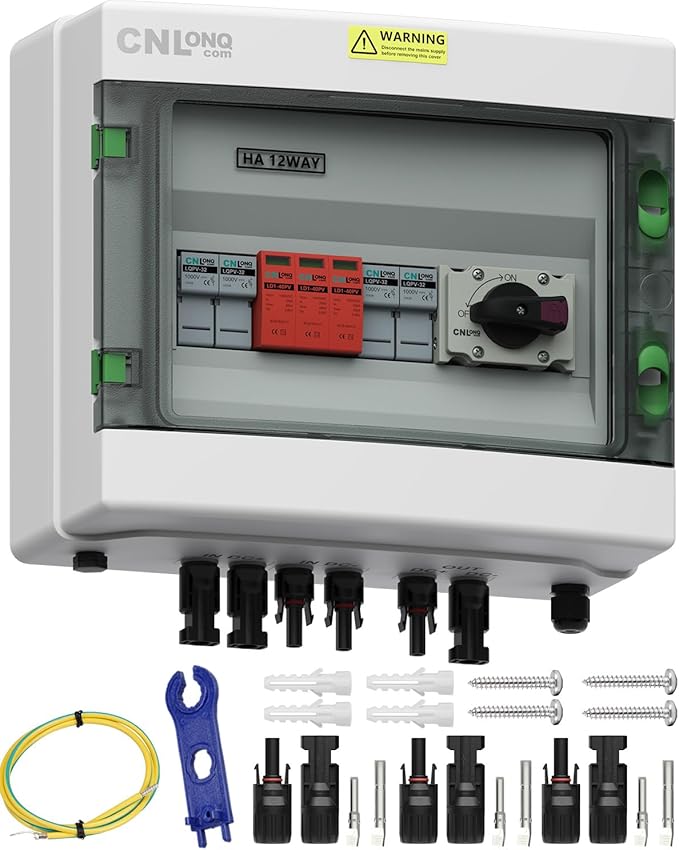

• [2 Input 1 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to 30kW of power in a 1000V system. The device has a maximum input current of 20A per string and a maximum output current of 32A per string and provides overvoltage, overload and quick disconnect features to ensure the safety of the PV system

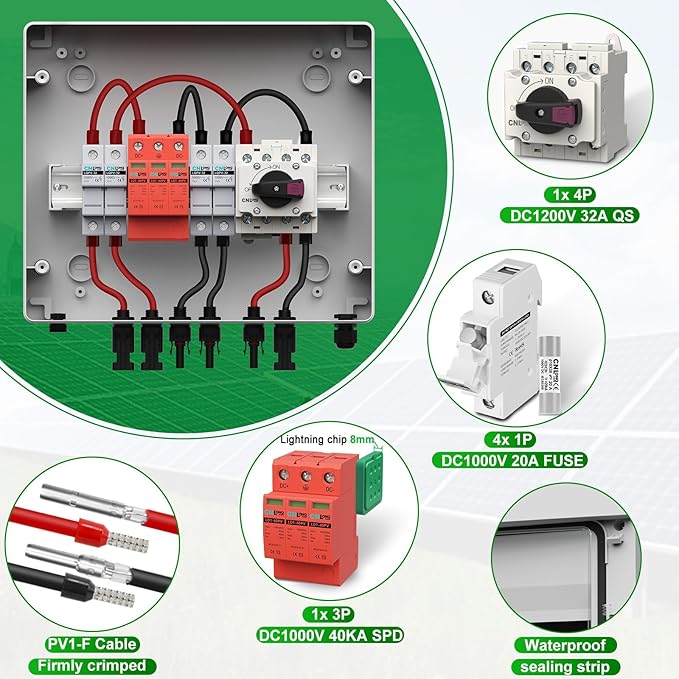

• [Isolator+SPD+FUSE]: CNLonQcom's PV Combiner Box are equipped with 32A DC1000V disconnect switch, DC1000V T2 surge protector and 20A DC1000V fuse. Capable of switching circuits and providing short circuit, overvoltage, leakage and lightning protection

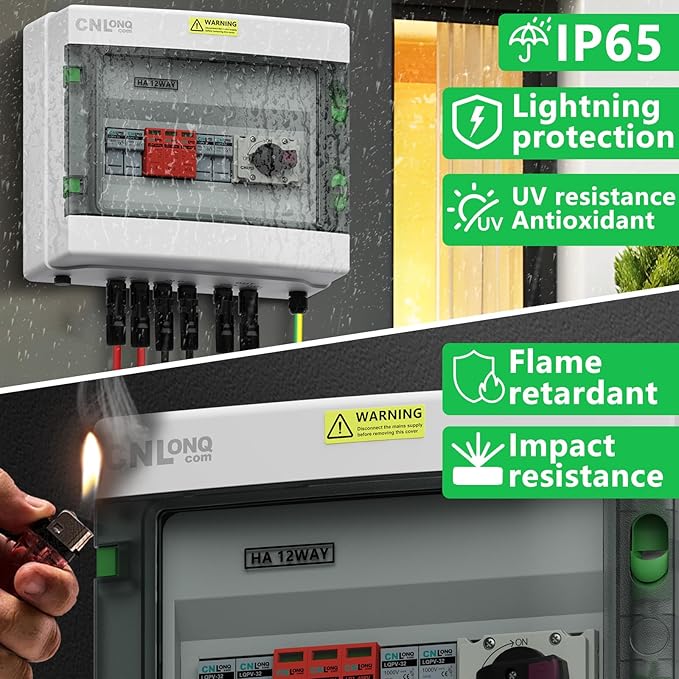

• [Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both indoor and outdoor use and is resistant to sand, dust and rain

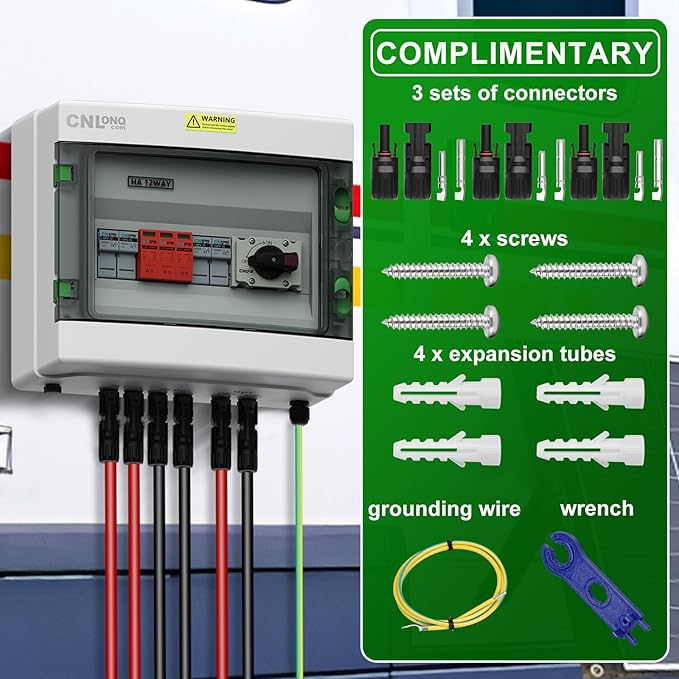

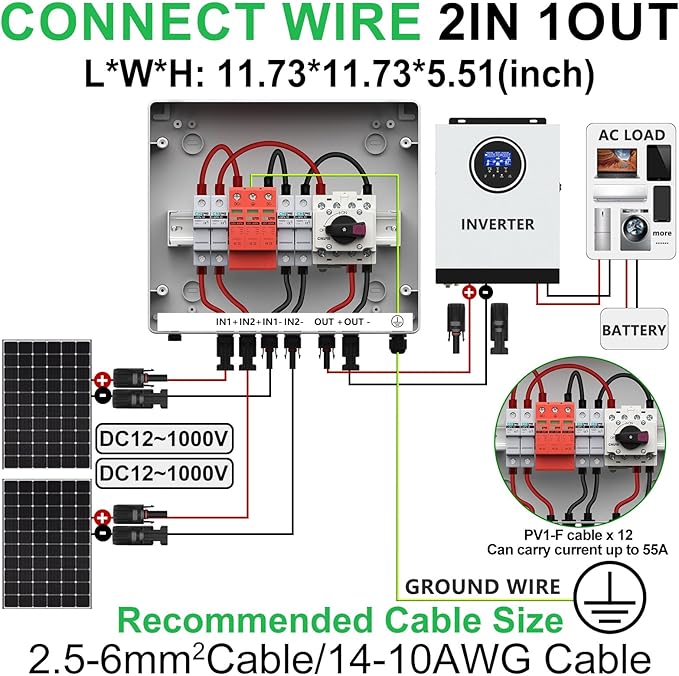

• [Easy Wiring and Wall Mount]: CNLonQcom's Solar Combiner Box come pre-wired with 10AWG PV1-F cable inputs and jumpers to simplify installation, just connect the outputs and ground wire. A free ground wire is included in the package for use if needed
• [Application]: Designed for grid-tied or off-grid solar systems, including solar panels, RVs, boats, rooftops, and other wind or solar systems. Supports up to 720W in a 12V system, up to 1440W in a 24V system, and up to 2880W in a 48V system, making it a powerful and reliable solution for small to medium-sized solar projects

Overview

• Brand : CNLonQcom
• Material : Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
• Number Of Circuits : 3
• Manufacturer : CNLonQcom
