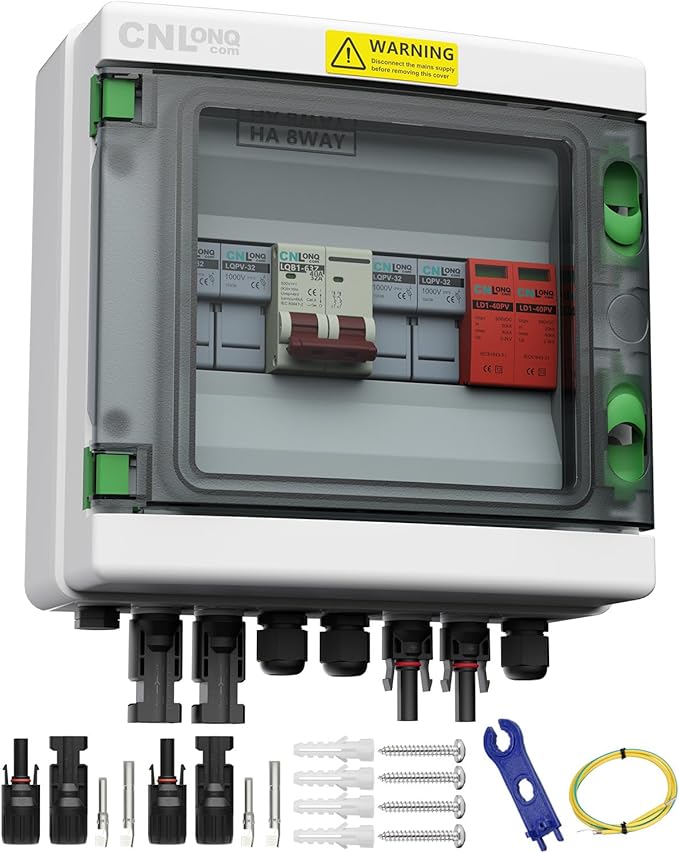

2 String Solar PV Combiner Box IP65 2 in 1 Out DC500V 40A Circuit Breaker with Surge Protector and 20A PV Fuse,Solar Disconnect Switch Outdoor Waterproof for Solar Panels System
[2 Input 1 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to 500V DC and 20kW. The device maximum input current of 20A per string and maximum output current of 40A per string, and provides a quick disconnect for safety during maintenance of the PV system

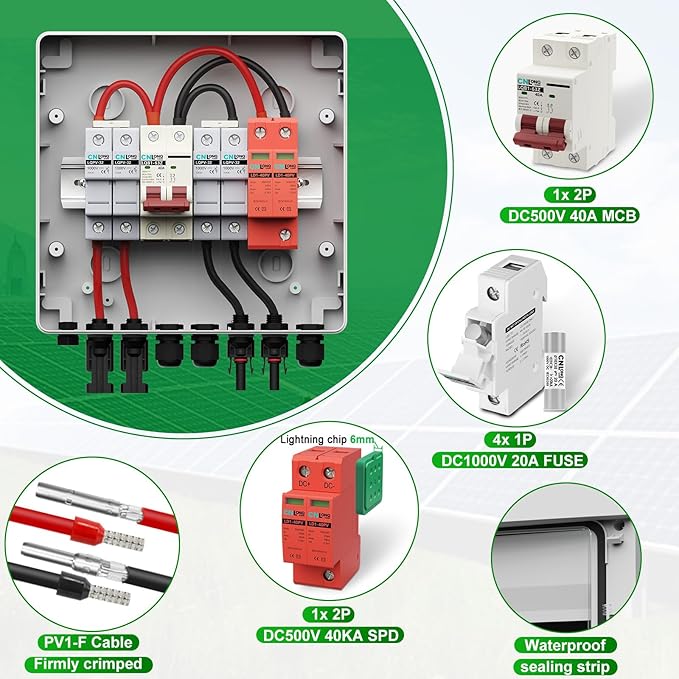

[MCB+SPD+FUSE]: CNLonQcom's PV Combiner Box are equipped with 40A DC500V circuit breaker, DC500V T2 surge protector and 20A DC1000V fuse. Capable of switching circuits and providing short circuit, overvoltage, leakage and lightning protection

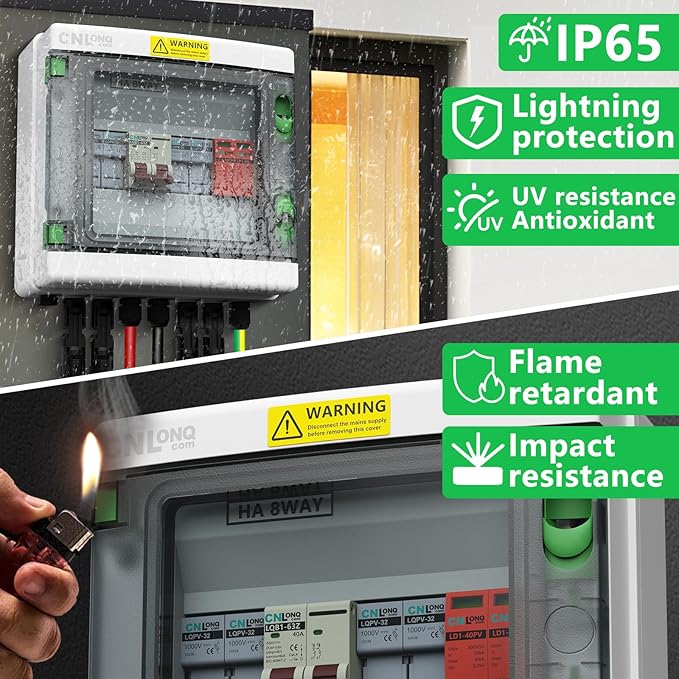

[Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both indoor and outdoor use and is resistant to sand, dust and rain

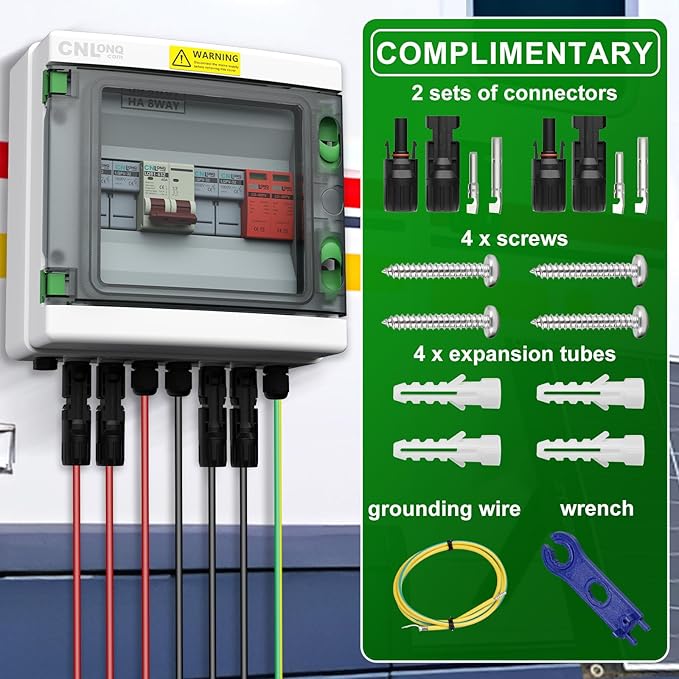

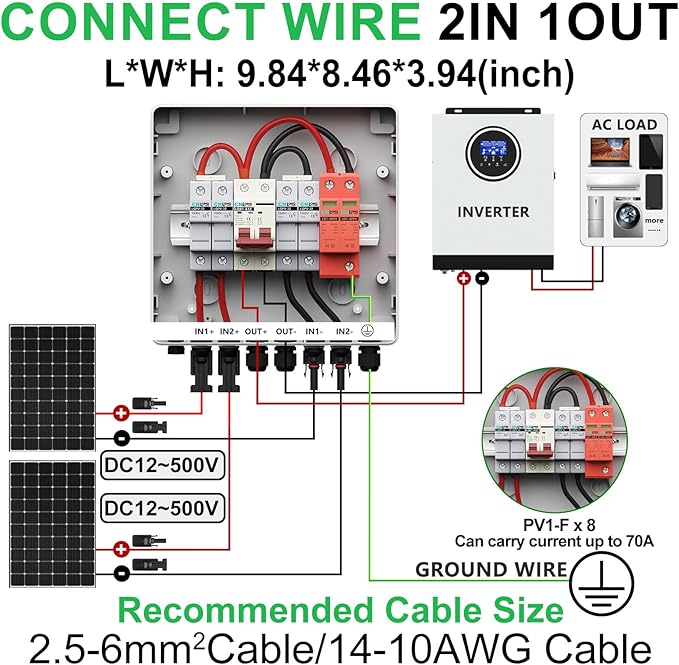

[Easy Wiring and Wall Mount]: CNLonQcom's Solar Combiner Box come pre-wired with 10AWG PV1-F cable inputs and jumpers to simplify installation, just connect the outputs and ground wire. A free ground wire is included in the package for use if needed
[Application]: Designed for grid-tied or off-grid solar systems, including solar panels, RVs, boats, rooftops, and other wind or solar systems. Supports up to 480W in a 12V system, up to 960W in a 24V system, and up to 1920W in a 48V system, making it a powerful and reliable solution for small to medium-sized solar projects

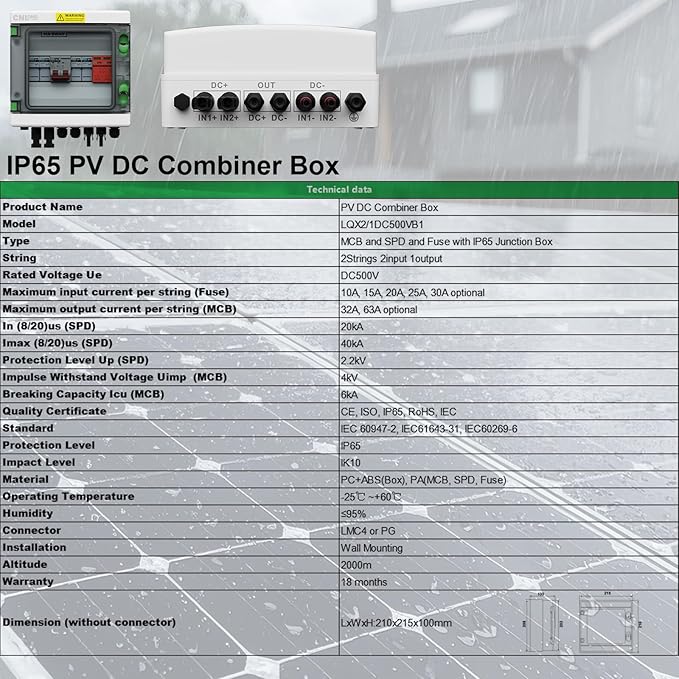

Overview
Brand : CNLonQcom
Product Dimensions : 9.84"L x 8.46"W x 3.94"H
Material : Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
