About This

• Wide Compatibility - Suitable for various lead-acid batteries (including open, sealed, AGM, etc.). The controller automatically recognizes 12V/24V. When installing for the first time, please ensure that the battery has sufficient voltage so that the controller can recognize it as the correct battery type. b1 is lead-acid battery (12V/24V automatically recognized); b2 is lithium-ion battery(3 series of 11.1V lithium batteries); b3 is lithium iron phosphate battery(4 series 12.8V), and the factory setting is by default b1.
• Tracking Charging - The MPPT controller continuously detects during the charging process, conducts bidirectional focusing tracking, and automatically focuses and tracks charging. The MPPT tracking efficiency can reach up to 99.9% at most. The charging efficiency is 15% to 20% higher than that of general controllers. Bidirectional moss tube anti-backflow circuit, high-power charging mode, ultra-low heat generation.
• Industrial-grade Main Control Chip - 30A MPPT controller adopts an industrial-grade main control chip. High sampling accuracy, with precise and real-time display of temperature, charging current and discharging current, making the power generation clear at a glance. The complete 3-stage charging management effectively protects the battery and makes your battery last longer.

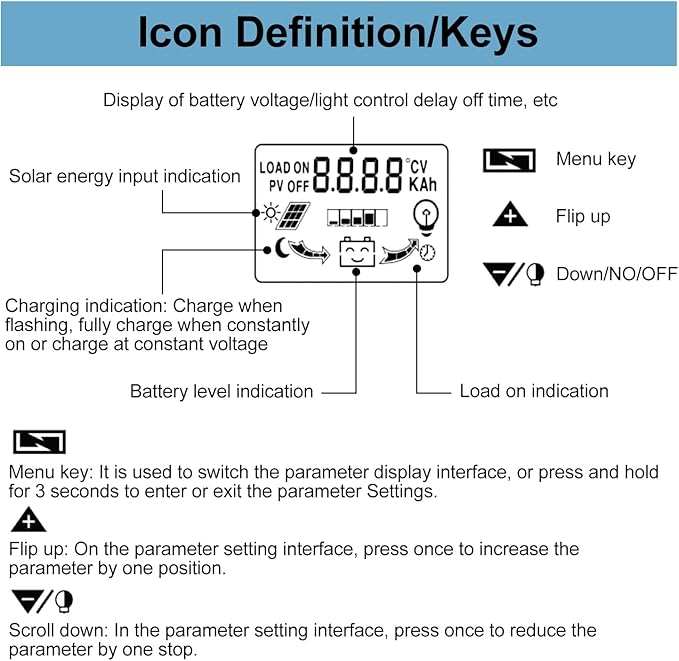

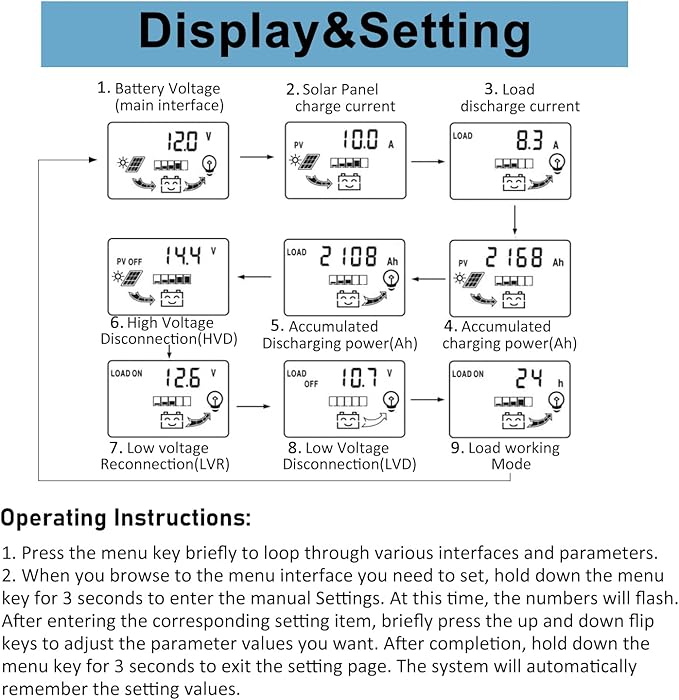

• LCD Real-time Display - Large-screen LCD display that can show charging and discharging currents; Cumulative generated and discharged electricity; Temperature; Light control + delay control; Moreover, the charging and discharging parameters are adjustable. It has functions such as power-off memory. There is no need to reset the battery when it runs out.

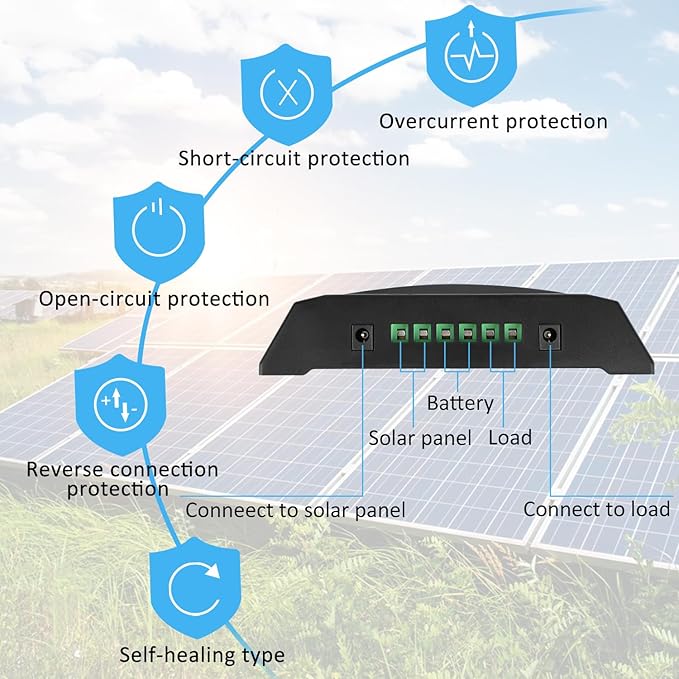

• Reliable Protection - The controller is internally equipped with overcurrent, short circuit, open circuit, reverse connection, overcharge, temperature control, reverse current prevention, overload, low voltage and other protections, all of which are self-recovering types and will not damage the controller. This ensures the stable operation of the system and extends the battery's service life.

Overview

• Color : Blue
• Brand : TCEUMIK

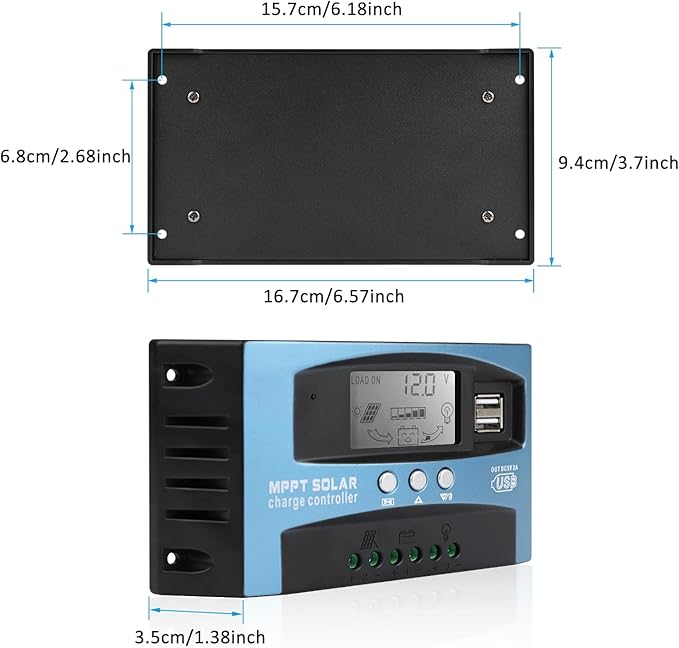

• Product Dimensions : 6.57"L x 1.38"W x 3.7"H
• Material : Plastic
• Display Type : LCD
