About This

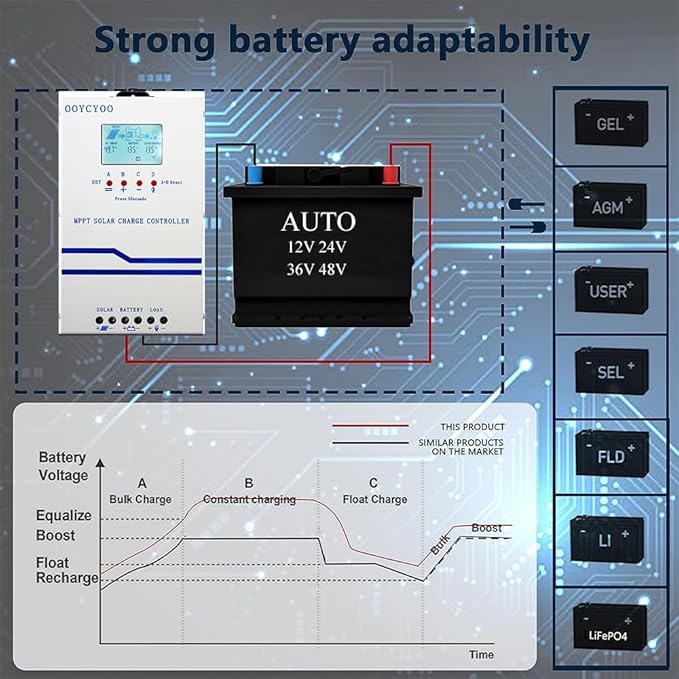

• 【Support various types of batteries】Compatible with many types of 12/24/36/48V batteries, such as Lead-acid battery, Sealed battery, Gel battery, AGM battery, Flooded battery, Lithium battery.
• 【Efficient 80A MPPT Solar Charge Controller】The 80A mppt solar charge controller is compatible with 12V/24V/36V/48V system voltages and features innovative MPPT (Maximum Power Point Tracking) technology with tracking efficiencies up to 99% and peak conversion efficiencies up to 98%.
• 【Full battery charging protection】Built-in PV array short-circuit protection, PV input over-current protection, load short-circuit protection, PV polarity reversal protection, battery polarity reversal protection, over-temperature protection and many other battery protection functions make it safer to use.
• 【Wide Range Voltage/Powe Support】100a solar charge controller supports High PV Input Power/Voltage. The charger controller can accept Solar voltage up to 150V. When the battery is 12V system: Suggest Solar power 1000W, suggest pv input voltage range: DC20V~DC80V; 2000W 37~105V when in 24V; 3000W 50~150 when in 36V; 4000W 72-150v when in 48V.
• 【Dual Cooling, Efficient Heat Dissipation】The 80 amp charge controller is constructed with die-cast aluminum, ensuring excellent heat dissipation and reduced power consumption. Additionally, it features a turbofan fan for efficient cooling (activates at temperatures >45°C and turns off <40°C). The upgraded turbofan fan cooling system is quieter and more effective, making it suitable for use in RVs, commercial vehicles, boats, yachts, and solar systems.

Overview

• Color : white,blue
• Brand : OOYCYOO

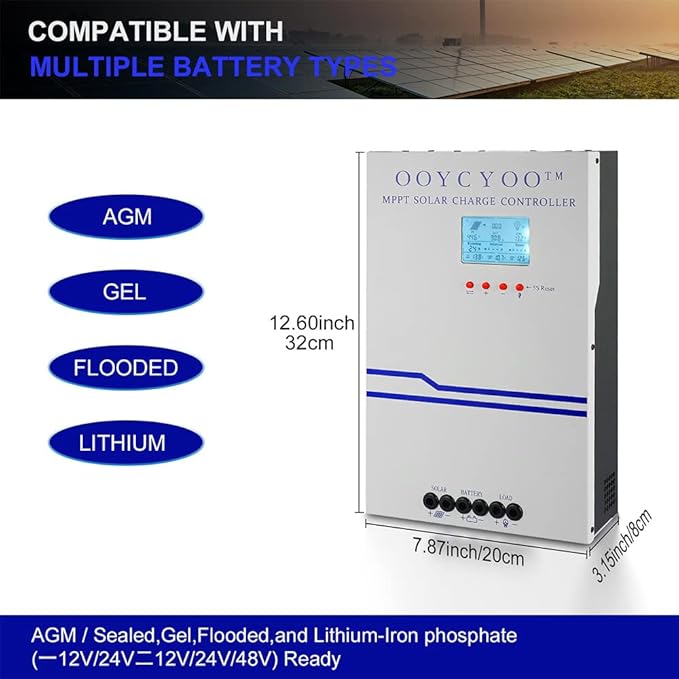

• Product Dimensions : 12"L x 7.8"W x 3.2"H
• Material : Aluminum
• Display Type : LCD
