• [ 2MC4, 32A, DC1500V ] Ui: 1500V DC; Ith: 32A; Uimp: 8000V; Icw: 1KA, 1S. This DC disconnect comes with 2 MC4 connectors and matched terminals for easy wiring.

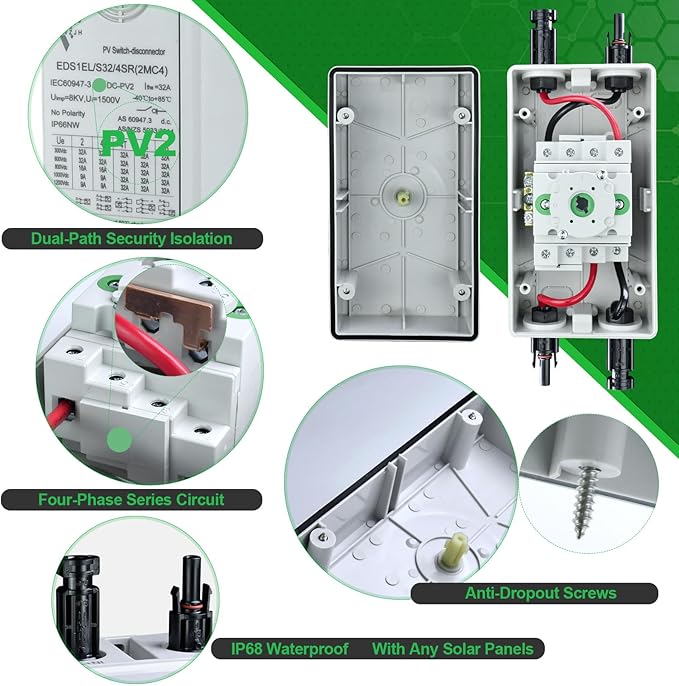

• [ 4-Pole, PV2 ] PV2 rating, supports frequent switching. Specification Met: CB, CE, TUV, ISO 9001, RoHS. The PV switch disconnector has 4 separate circuits of 32 amps each, 64A max. for 2 circuits for high work safety.

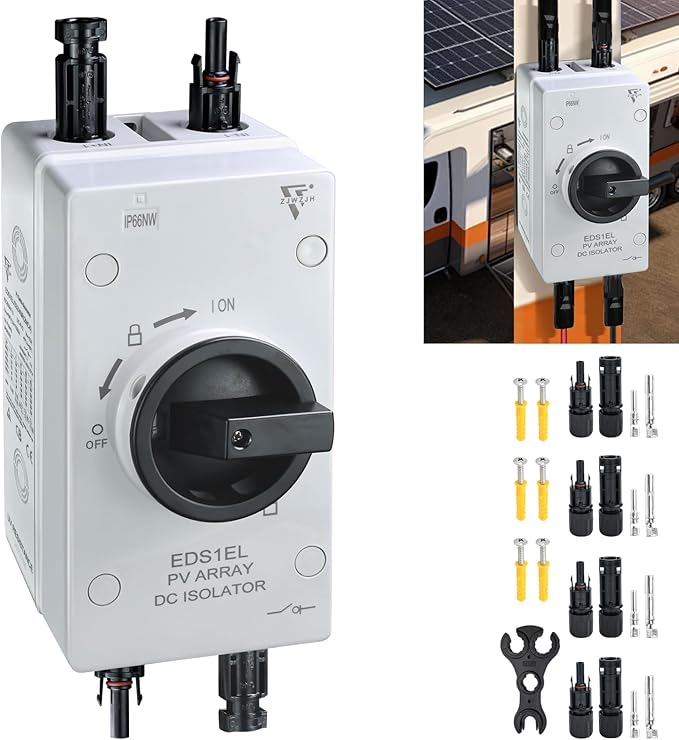

• [1-In 1-Out] 1 string; 1 in,1 out. QUICK & EASY INSTALLATION: Pre-wired with solar connectors and including mounting screws, solar isolator disconnect switch allows for fast, hassle-free connections to solar panels or inverters, saving time and effort.

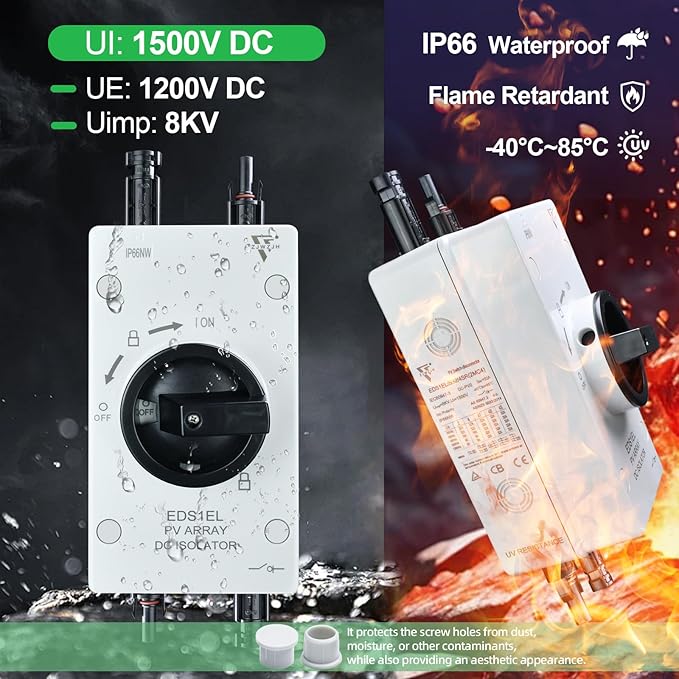

• [RELIABLE & DURABLE] ZJWZJH's solar pv isolator switches are made of high quality PC material, It has the advantages of UV-proof, flame retardant, water and dust prevention (IP66), Cold and heat protection (-40℉~+185℉), environmental aging and corrosion resistance, and long service life, perfect for outdoor and indoor installation.

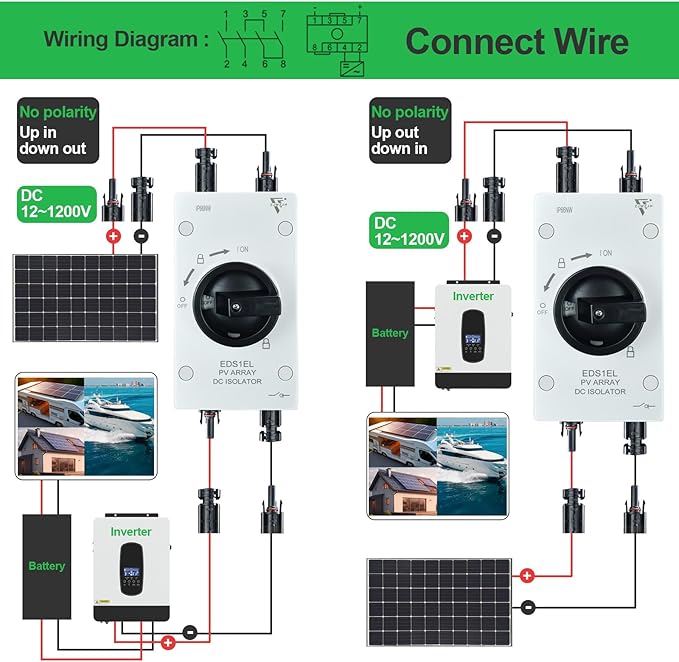

• [WIDE APPLICATION] Whether it's solar panels, solar charge controllers, solar inverters or solar modules, you can integrate our DC disconnect switches to connect and control them all. It is ideal for private and commercial PV networks and perfect for your caravan or boat solar system.

Overview

• Operation Mode : OFF-ON
• Current Rating : 32 Amps
• Operating Voltage : 1500 Volts (DC)
• Contact Type : 4 Poles
• Connector Type : Plug In
• Brand : ZJWZJH
• Switch Type : Disconnect Switch
• Terminal : Screw
• Material : Plastic

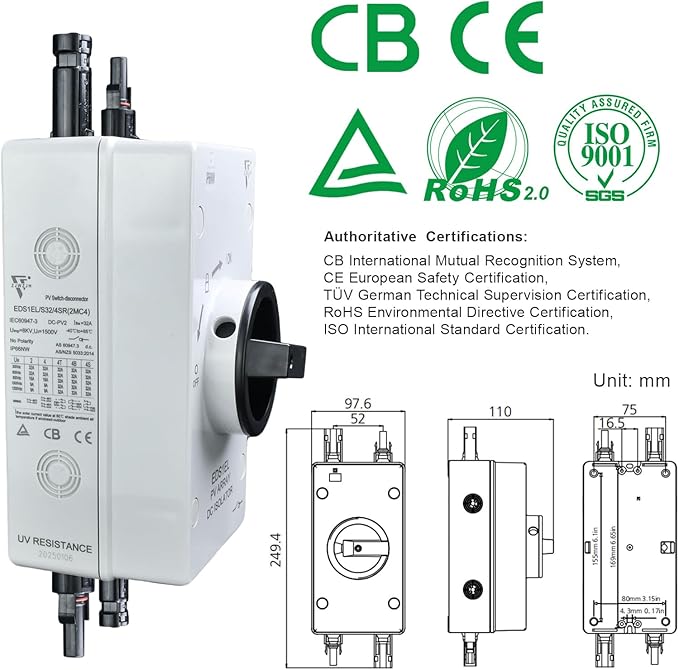

• Item dimensions L x W x H : 9.82 x 3.86 x 4.33 inches
