About This

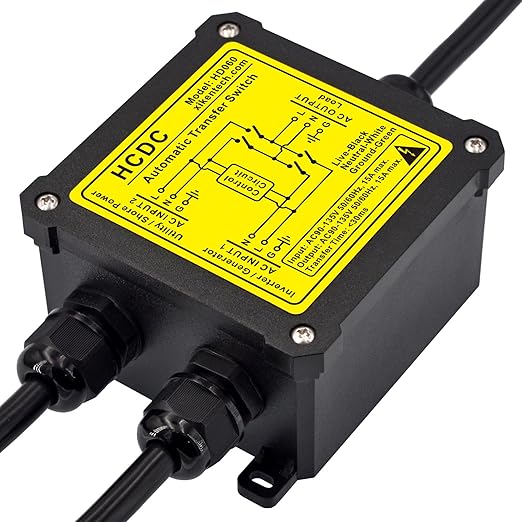

• HCDC HD060 Automatic transfer switch, an easy to mount 15Amp inline transfer relay provides switching between AC INPUT 2 (Utility or Shore Power) and AC INPUT 1 (Inverter or Generator) AC source. When AC INPUT 2 is powered, the load power will be switched to AC INPUT 2. When AC INPUT 2 is powered off, the load power will be switched to AC INPUT 1.
• Operating voltage AC 90 to 135V 50/60Hz. Maximum current 15 Amp. Transfer time less than 30mS (0.03 second). For most smart devices or computers, the switching action of 30mS time will not affect their normal operation.

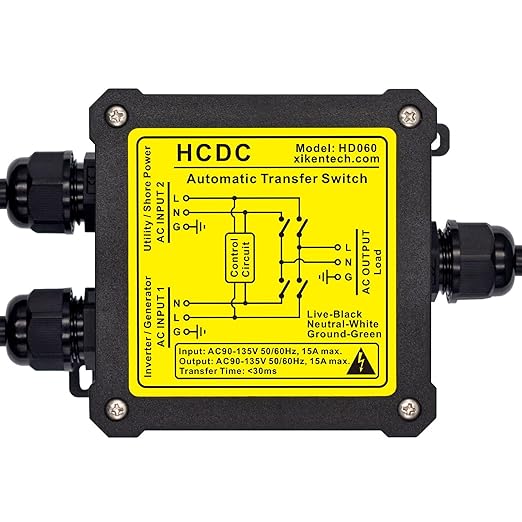

• Internal four high power SPST relays switch design, effectively avoid the problem of DPDT relay high inductive load arcing. Live and Neutral wire are switched at the same time. The Ground wires of the two inputs and output are connected together internally and will not follow the switch on and off.
• IP68 Waterproof high level enclosure, suitable for indoor or outdoor use. Flame retardant rating V1. Case material: PC (Polycarbonate). Seal material: Silicone rubber. External screw: 304 stainless steel.

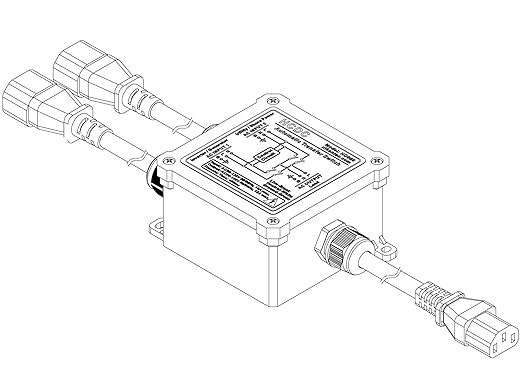

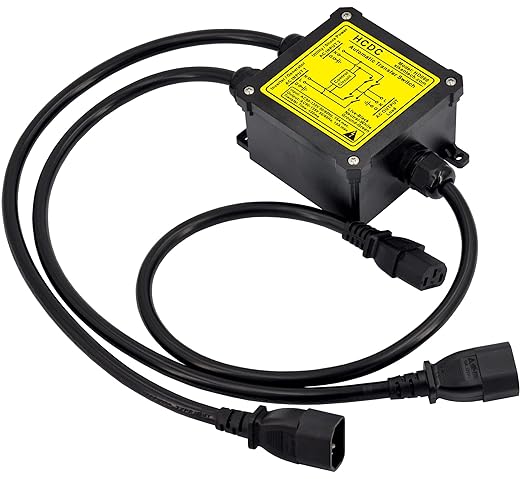

• AC INPUT 1 and ACINPUT 2 cables: Length 19 inch (0.5 meter), IEC320 standard C14 3 prong plugs. AC OUTPUT cable: Length 19 inch (0.5 meter), IEC320 standard C13 3 prong socket.

Overview

• Operation Mode : Automatic
• Current Rating : 15 Amps
• Operating Voltage : 120 Volts (AC)
• Contact Type : Normally Open
• Connector Type : Plug In
• Brand : HCDC
• Switch Type : Automatic Switch
• Terminal : Screw
• Material : Polycarbonate

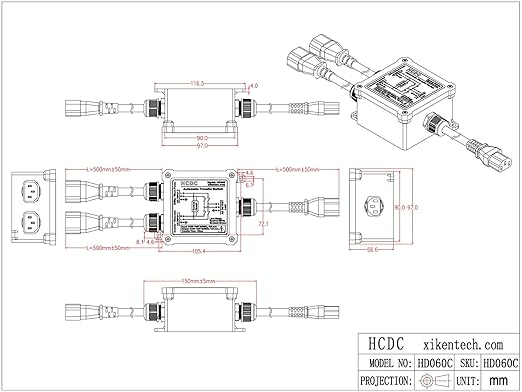

• Item dimensions L x W x H : 5.9 x 3.82 x 2.23 inches
