About This

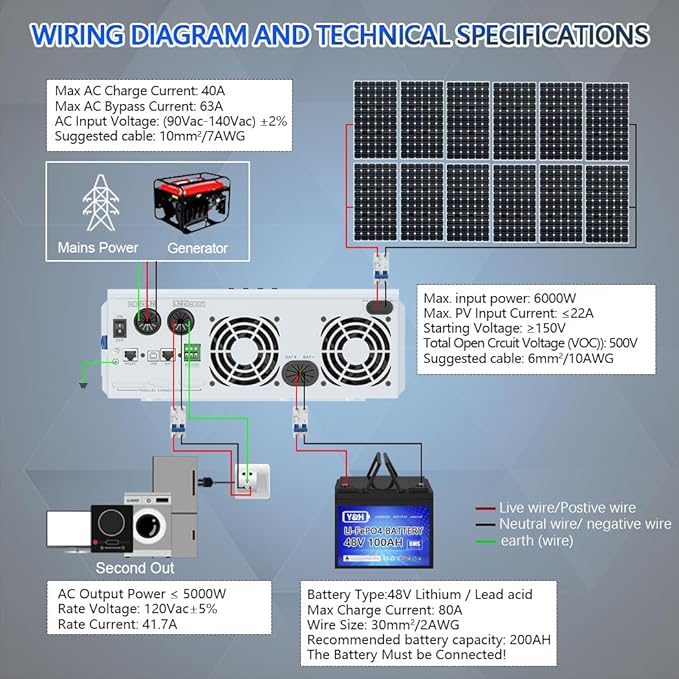

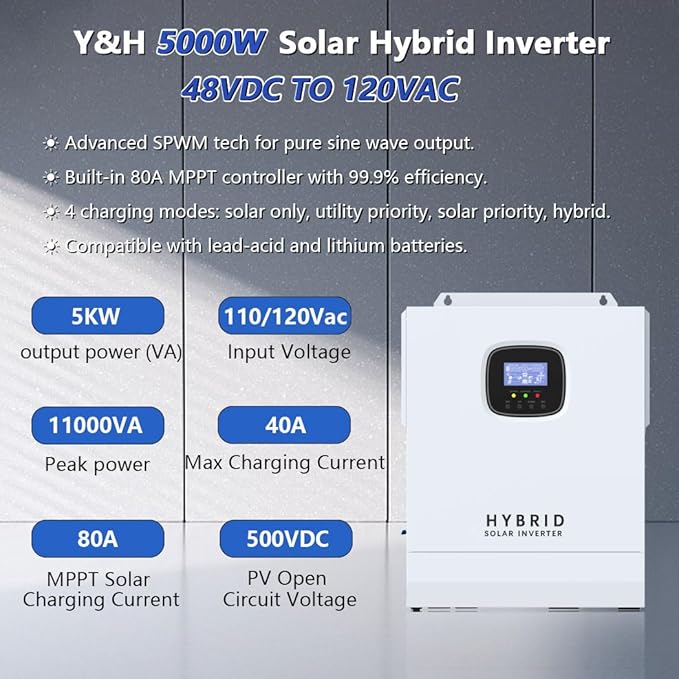

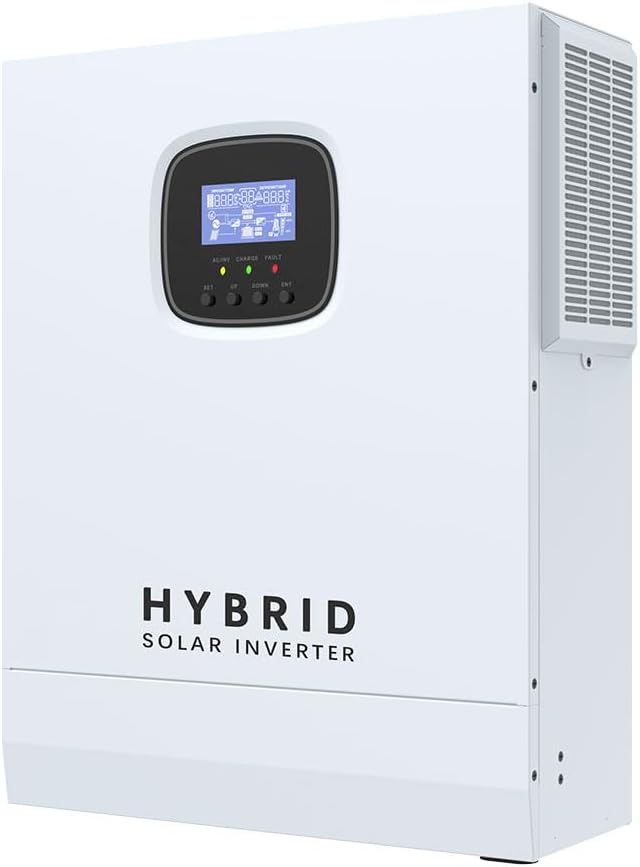

• Y&H 5000W solar inverter peak power of 11,000VA and a max input power of 6000W, this inverter offers a pure sine wave output. It has a wide voltage range of 120-500Vdc, a max input solar current of 22A, and a maximum power output of 6000W. The inverter also boasts a max charge current of 80A and an AC input voltage range of 90-140V, with output options of 100/105/110Vac ±5%.

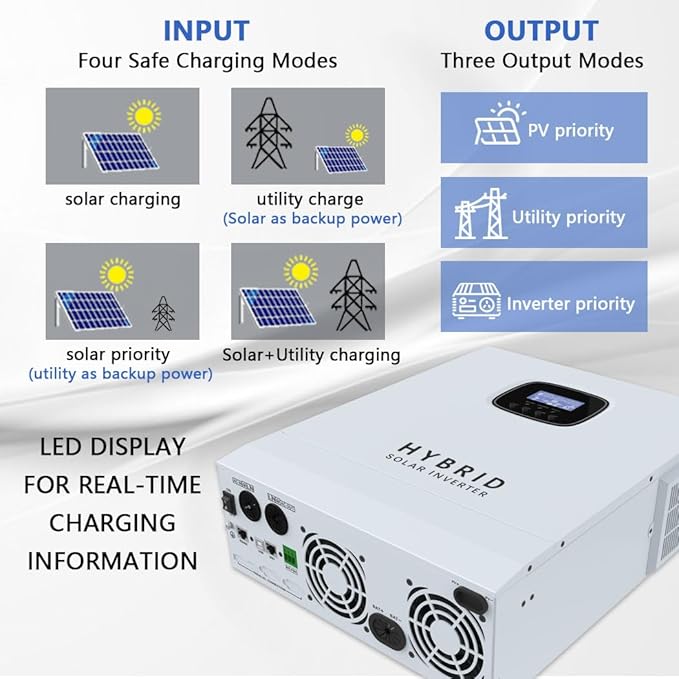

• This 110V Off-Grid Power solar Inverte offers 4 optional charging modes—PV priority, utility priority, hybrid charging, and only solar charging—along with two output modes, inverter and mains, to meet diverse application needs.
• The 48V solar hybrid inverter incorporates advanced MPPT technology, achieving a remarkable charging efficiency of 99.9%. It utilizes DC to AC advanced SPWM technology to deliver a reliable pure sine wave power output.

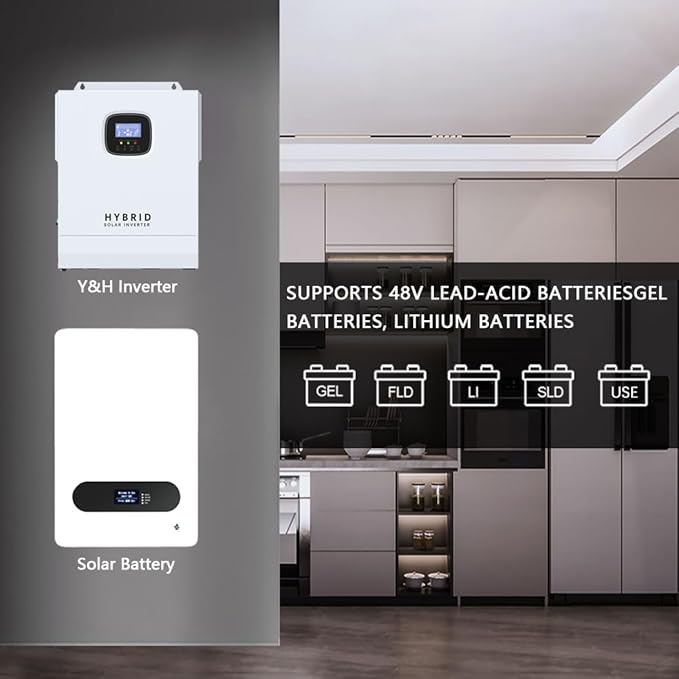

• Battery compatibility and monitoring: Requires 48V lead-acid or lithium batteries, Only work with 48Vdc battery system,Battery Charging Voltage Range:40-60Vdc. The system supports various battery types and BMS communication, with a unique dual activation function for BMS and remote monitoring capabilities for device operating parameters.

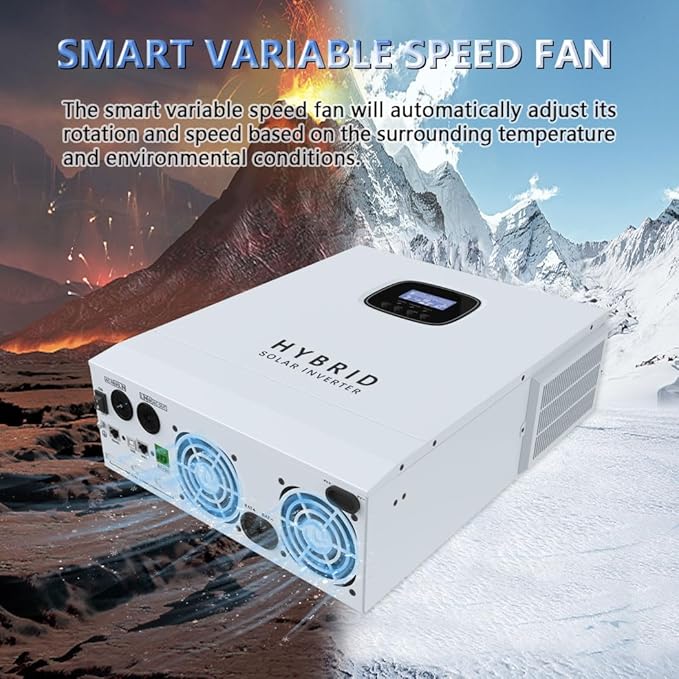

• Easy installation and off-grid design: this 48V solar inverter designed for off-grid system, comes with clear installation instructions suitable for beginners. The inverter features an LCD display design, three LED indicators for system data and status display, and an intelligent variable speed fan for efficient heat dissipation and extended system lifespan.
• This Solar inverter supports operation without a battery, working solely with grid power and solar energy. The solar power generation must be greater than the load power. For example, if the connected load is 3000W, then as long as the solar panels can continuously generate a power output of at least 3000W, it can be used effectively. In a configuration without a connected battery, it is recommended that the solar panel voltage (VOC) be above 200V, ideally around 250-360V for optimal efficiency. The maximum voltage should not exceed 500V.

Overview

• Brand : Y&H
• Recommended Uses For Product : Recreational Vehicle, Camping, Boat, Off-grid living
• Power Source : Solar Powered
• Wattage : 5000 watts
• Model Name : HSI 5000U
