RV Automatic Transfer Switch, Rated 240VAC 50A 70A Neutral - Applied to RV, Speedboats, 120/240 Volt Power Sources
RV Automatic Transfer Switch, Rated 240VAC 50A 70A Neutral - Applied to RV, Speedboats, 120/240 Volt Power Sources
Regular price
$143.98 USD
Regular price
$143.98 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
About This

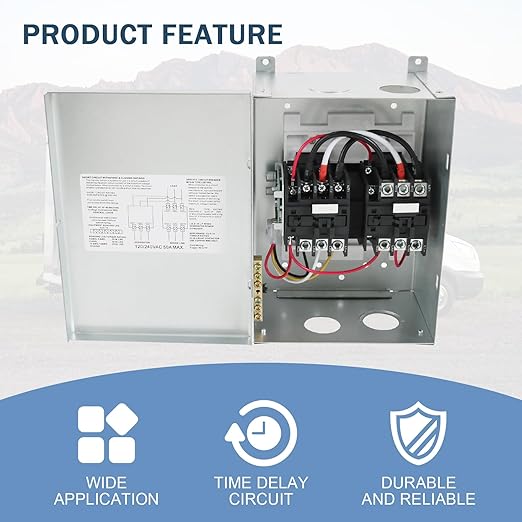

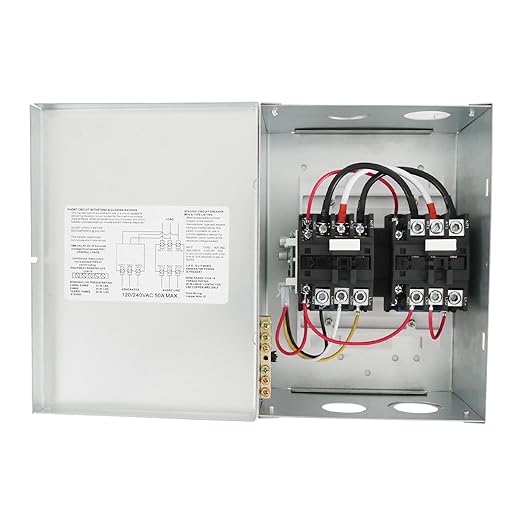

- Nirakoka RV Automatic Transfer Switch has been pre-wired to automatically change the primary source of AC current from shore power to generator or inverter power when activated.

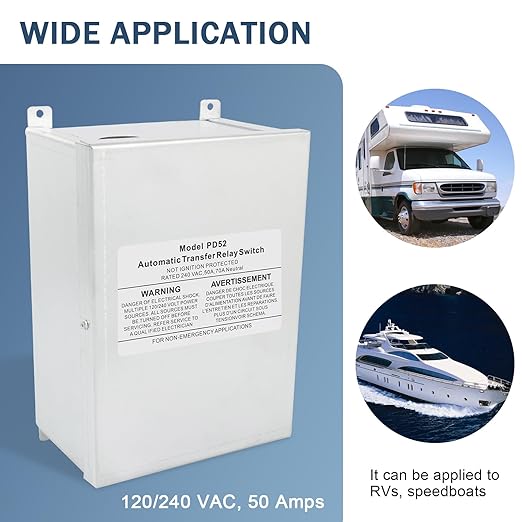

- WIDE APPLICATION β Applied to RVs, speedboats, and various high-power equipment that requires emergency power supply.
- AUTOMATICALLY SWITCH β This Automatic Transfer Switch 50 AMP can be used to automatically switch between inverter power and a generator. It switches to inverter power when the generator stops running. In the event of a inverter power outage, the generator will start automatically. The green L.E.D is lit when generator power is present.

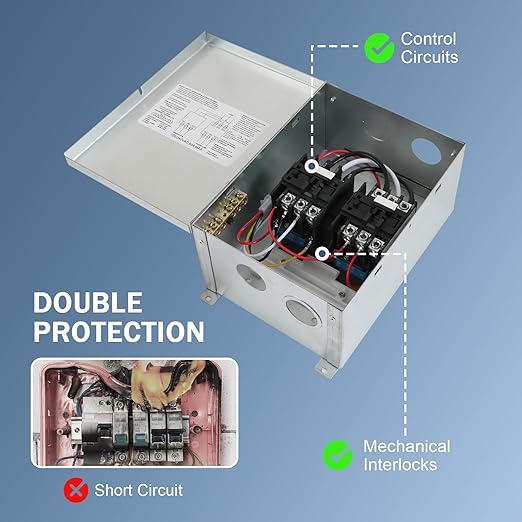

- DOUBLE PROTECTION β Double protection of built-in mechanical interlocks and control circuits prevents two separate 120/240 volt AC power sources from entering the AC distribution board at the same time and causing a short circuit.

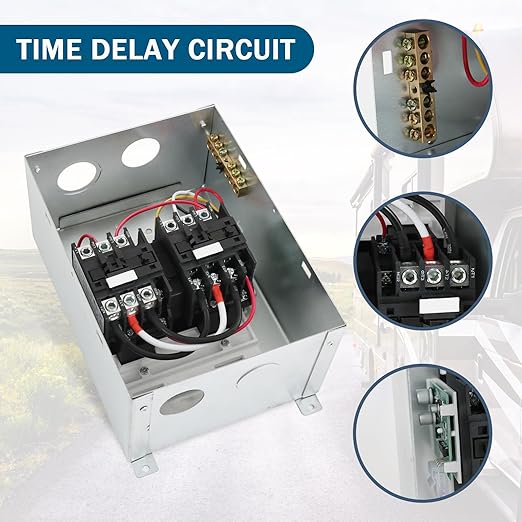

- TIME DELAY CIRCUIT β Once AC power from the Generator is sensed by this RV Automatic Transfer Switch, it will start a timer and automatically switch over to generator power supply after a 20-45 sec delay which ensures the generator has sufficient time to run up to speed before electrical load is applied.
Overview
- Operation Mode : Automatic
- Current Rating : 50 Amps
- Operating Voltage : 240 Volts (AC)
- Contact Type : Normally Open
- Connector Type : Quick Connect
- Brand : Nirakoka
- Switch Type : Rotary
- Terminal : Quick Connect
- Circuit Type : 2-way
- Mounting Type : Panel Mount
