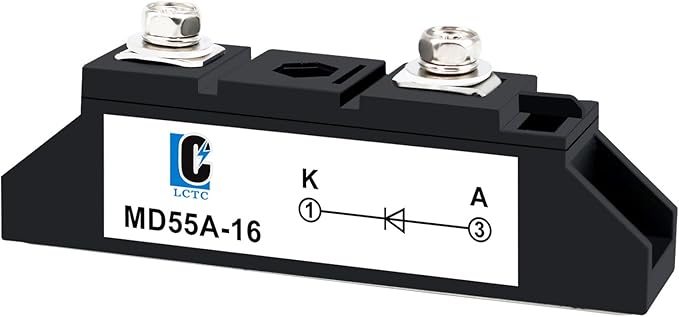

This model is anti-reverse diode MD 55A-16;Peak voltage 1600V;AC < 400VAC ;DC 3-1000VDC
Please make sure to add a suitable heatsink for the diode (already listed and available in our store)
Because it is commonly used in solar energy and photovoltaic power generation, and is often paired with solar cells and solar panels, some customers might refer to it as a "solar diode."
Using four diodes together can act as a rectifier bridge
Also known as a high current diode, if you need a higher current, please contact us
