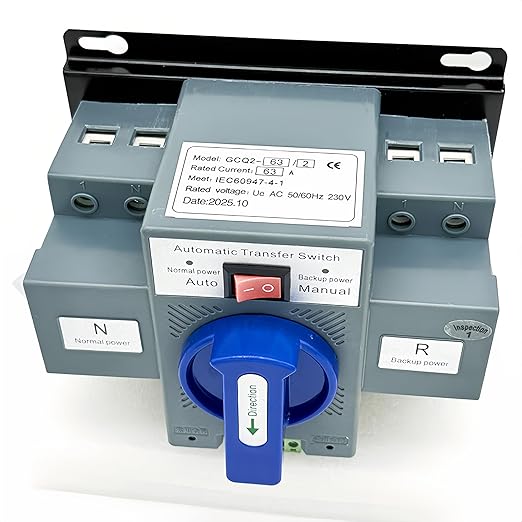

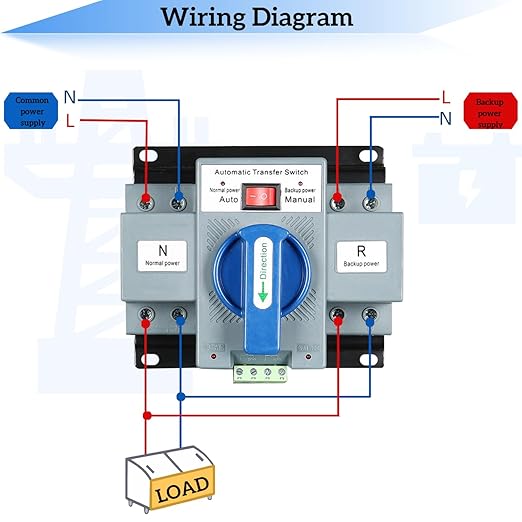

• 220V Dual Power Transfer Switch Functions and Features:This Transfer Switch is a PC-level infrequent switching switch, mainly used for automatic or manual conversion of dual power supplies, and can test whether the common power supply or backup power supply is normal. When the common power supply A is abnormal, the backup power supply B is quickly switched and put into use within 2 seconds to ensure the continuity, reliability and safety of power supply. When the common power supply returns to normal, it automatically switches from the backup power supply to the common power supply. Both power supply A and power supply B can be connected to the mains/generator/photovoltaic.

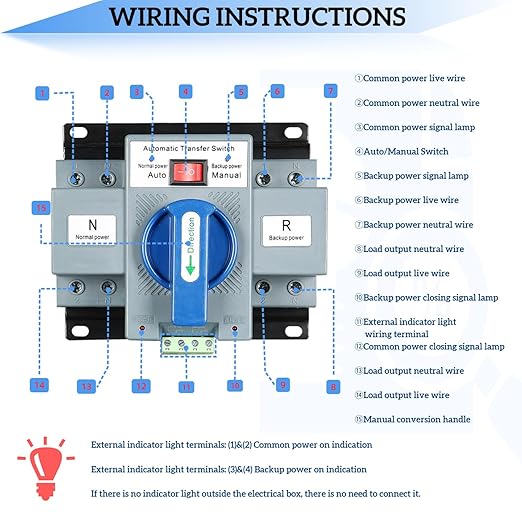

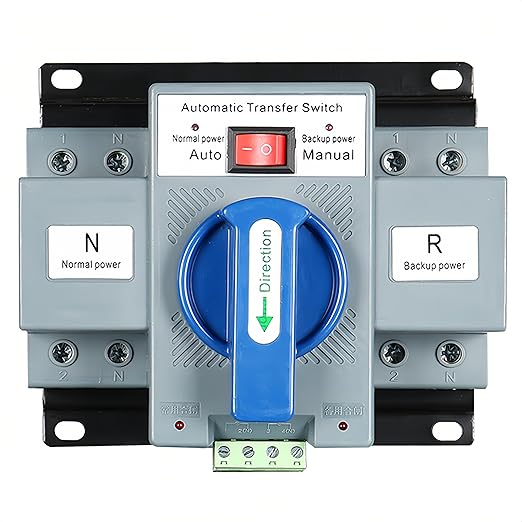

• Mini Transfer Switc-Automatic/Manual Mode: 1.To switch to manual operation, the red button switch located at the top must be set to the "Manual" position; the device can then be switched between the primary and backup modes by rotating the handle. 2. When the control mode is set to the "Auto" position, the transfer switch enters the automatic operating state, and the primary power source takes priority in supplying power.
• 2 Pole Automatic Transfer Switch Protection Function: The switch supports multiple protection functions, including short circuit, overload, phase loss, and undervoltage protection. This series of automatic transfer switches is suitable for 50/60Hz dual power grid. The working current is 63A. 220V/50Hz Undervoltage value: 175V, Recovery value: 195V (± 5V). Please select the product with the corresponding specifications according to the actual working voltage you need.

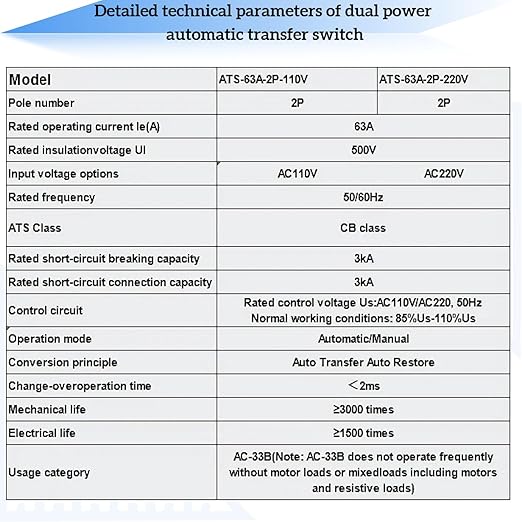

• 63A Automatic Transfer Switch Technical Parameter: 1,Usage class: AC-33B. 2, Temperature range-5°C-+40°C average temperature not more than 35°C in 24 hours. 3, rated short-circuit breaking capacity: 3kA. 4, rated short-circuit connection capacity: 3kA. 5, the conversion time: less than 3S. 6, The control voltage of the change-over switch is AC220V. 7, the mechanical life of the switch is 3000 times, the electric life is 1500 times. 8, rated insulation voltage: U=500V. 9, rated working voltage: 63A. 10, Under normal circumstances, the switch has the functionof self switching and self recovery, and the principle of powersupply priority.
• ATS 220V 2P Automatic Transfer Switch Wide Application: This dual power automatic transfer switch 110v ensures a stable power supply, it is used in situations where power outages cannot be sustained,which is very suitable for high-demand equipment; used in hospitals, low-temperature cold storage, data centers and emergency systems, it can automatically and quickly switch to the backup power supply during the power outage of the main power supply to ensure safe and reliable power supply. Suitable for indoor and outdoor generators.

Overview

• Operation Mode : ON-ON
• Current Rating : 63 Amps
• Operating Voltage : 220 Volts
• Contact Type : Normally Open
• Connector Type : Clamp
• Brand : JONAS C
• Switch Type : Toggle
• Terminal : Screw
• Material : Metal

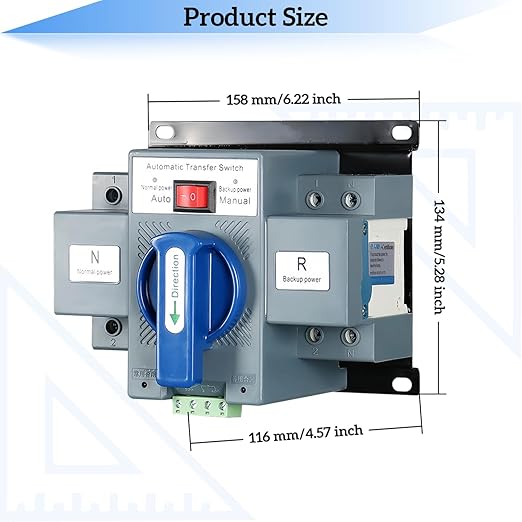

• Item dimensions L x W x H : 5.9 x 5.3 x 4.6 inches
