About This

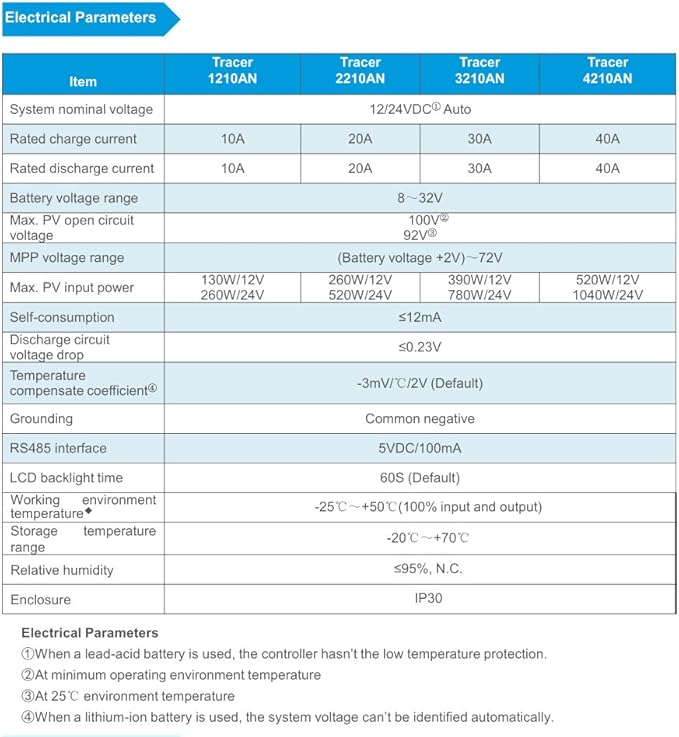

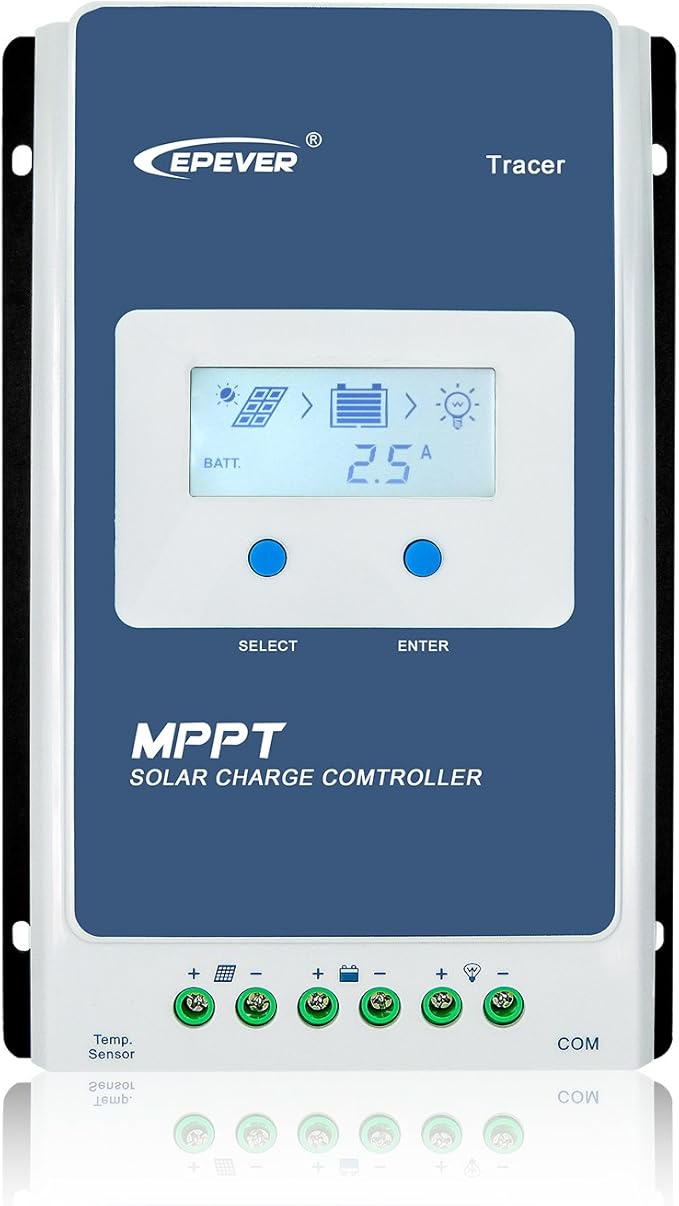

• EPEVER MPPT Solar Charge Controller 30A (Tracer3210AN-G3), 12V/24V auto system voltage recognition, Max PV 100V, Solar panels Max input power 390W for 12V Battery or 780W for 24V battery, Common Negative Grounding, Upgrade independent voltage regulation constant voltage output function, ultra-quiet design solves the problem of sharp noise from previous versions of the device, Better functions and advanced technology, More Safety Protection

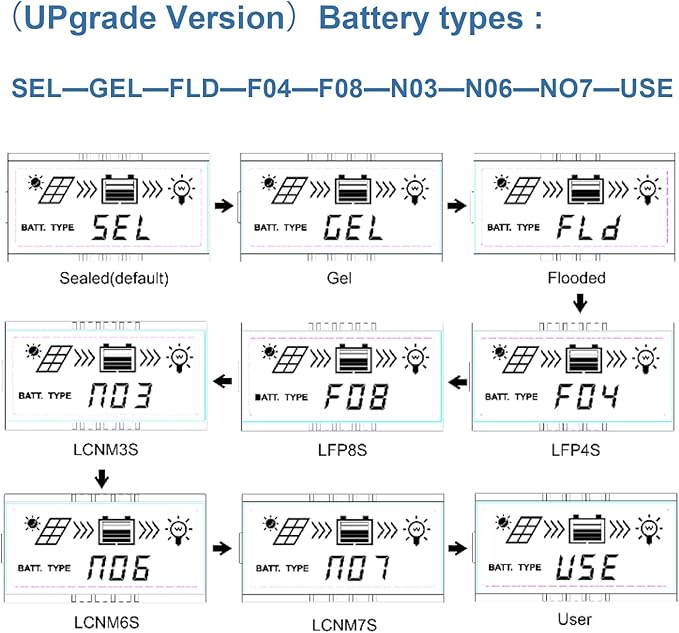

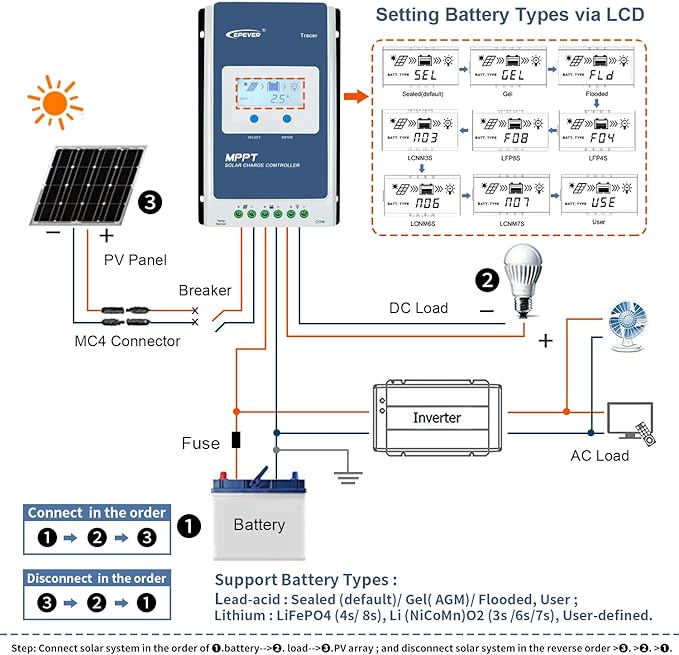

• Supports multiple battery types including Gel AGM Flooded Sealed and LiFePO4 (4s/12V; 8s/24V), Li (NiCoMn)O2 (3s/12V; 6s/7s/24V), Lithium user too. Battery temperature compensation function, Real-time energy statistics function, Overheating power reduction function; Multiple load work modes. Full-load operation without any drop in capacity within the range of working, Charging power and current limitation function which can ensure the controller's service life

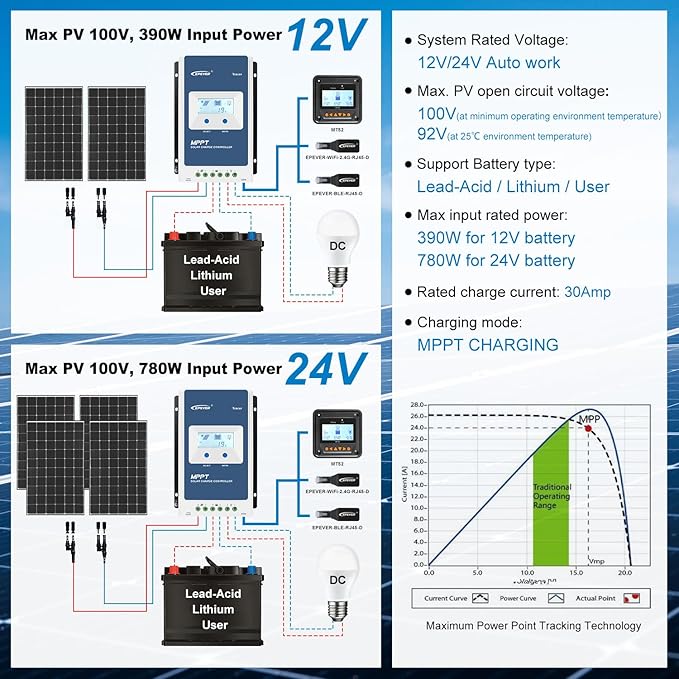

• Advanced MPPT control algorithm technology, with Max. tracking efficiency higher than 99.5%, Ultra-fast tracking speed and guaranteed tracking efficiency, minimize the maximum power point loss rate and loss time ; Wide MPP operating voltage range, High quality components, accurate recognition and tracking of multiple-peaks maximum power point, Maximum DC/DC conversion efficiency of 98%

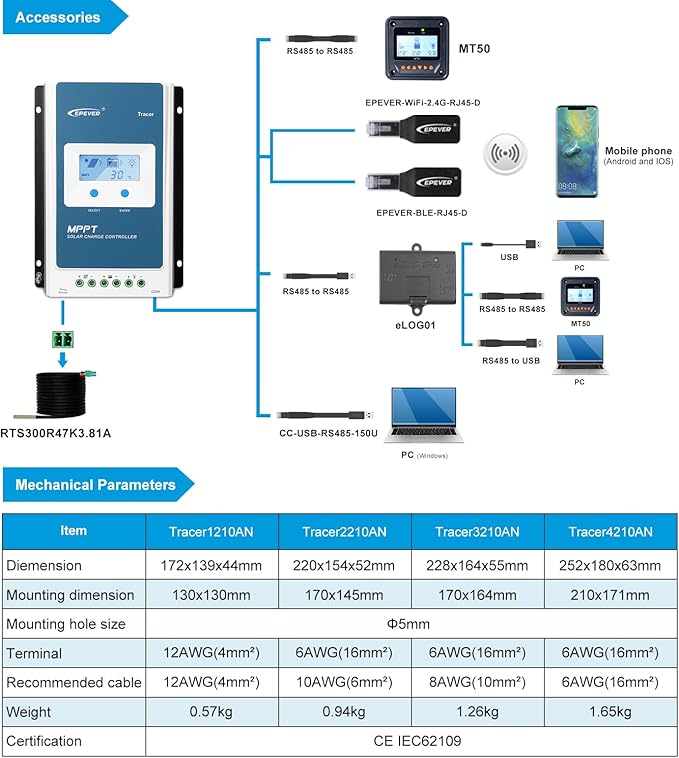

• With RS485 communication interface adopts professional protection chip and Modbus communication protocol, Optional Accessories such as MT50/MT52, WiFi adapter, BLE adapter, eLOG01, USB-RS485 cable to monitor and adjust more parameters by mobile phone APP or PC software
• TracerAN G3 series with robust construction and user-friendly interface, empowers both novice users and experienced professionals to optimize their solar installations efficiently. Wide range applications such as communication base station, home system, street lighting system, marine system, RV solar system, and site monitoring system. (Add 1 X Temperature sensor unit) EPEVER brand officially authorised Original Products, US warehouse located in Chicago and engineers will help you to find solution and solar system suggestion

Overview

• Color : MPPT 30A
• Brand : EPEVER
• Voltage : 24 Volts

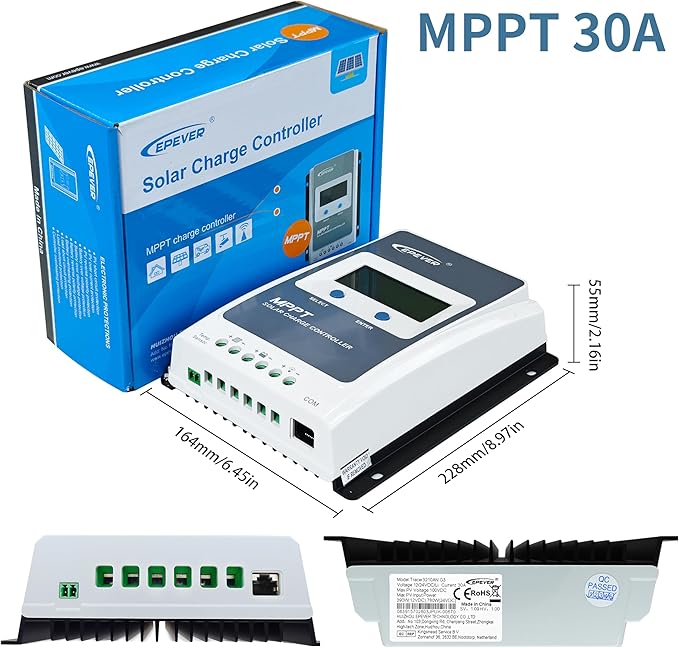

• Product Dimensions : 8.98"L x 6.46"W x 2.17"H
• Material : Gel
